CANopen Integrated Motors

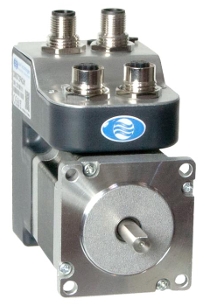

DMS6 series, stepper motor with integrated drive and CANopen bus
The DMS6xx2 integrated motors have NEMA23 flange and nominal torque up to 3.0Nm and are equipped with CANopen fieldbus and profile CiA301 and CiA402.
The motor with integrated drive can operate according to the Profile Position, Profile Velocity, Profile Torque and Interpolated position. Also available the Homing mode, which includes more than 50 different types of homing.
Family Development
Power Supply / Motor Torque 24Vdc Auxiliary Power Supply |
3 Digital Inputs 3 Digital Inputs/Outputs 2 Analog Inputs |
3 Digital Inputs 3 Digital Inputs/Outputs 2 Analog Inputs Closed loop incremental Encoder |
---|---|---|
20..50Vdc / 1.1Nm | DMS604241 | DMS624241 |
20..50Vdc / 1.8Nm | DMS604264 | DMS624264 |
20..50Vdc / 3.0Nm | DMS604271 | DMS624271 |
24..90Vdc / 1.1Nm | DMS607241 | DMS627241 |
24..90Vdc / 1.8Nm | DMS607264 | DMS627264 |
24..90Vdc / 3.0Nm | DMS607271 | DMS627271 |
For more information on the DMS6 series: BROCHURE
