EtherCAT drives DDS7xE series
EtherCAT drives

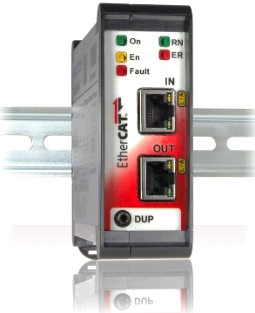

DDS7xE series, stepper motor drives with EtherCAT interface
The DDS7xE series stepper motor drives are equipped with EtherCAT fieldbus and support the CoE (CANopen over EtherCAT) protocol with CiA 402 profile.
The drive can operate according to the Profile Position, Profile Velocity, Profile Torque, Cyclic Synchronous Position (CSP) and Cyclic Synchronous Velocity (CSV) modes. Finally, the Homing mode is available and includes more than 50 different homing methods.
Family Development
Power Supply / Motor Current 24Vdc Auxiliary Power Supply |
5 Digital Inputs, 2 Digital Outputs 1 Analog Input |
8 Digital Inputs, 3 Digital Outputs 1 Analog Input 1 Encoder Input A, B, I 1 Absolute Encoder Input SSI |
---|---|---|
20..50Vdc (16..36Vac) / 0.2..1.4Arms | DDS71E41(A) | DDS72E41(A) |
20..50Vdc (16..36Vac) / 1.0..4.5Arms | DDS71E44(A) | DDS72E44(A) |
20..50Vdc (16..36Vac) / 2.0..10.0Arms | DDS71E48(A) | DDS72E48(A) |
24..90Vdc (20..65Vac) / 1.0..4.5Arms | DDS71E74(A) | DDS72E74(A) |
24..90Vdc (20..65Vac) / 2.0..10.0Arms | DDS71E78(A) | DDS72E78(A) |
For more information on the DDS7xE series: BROCHURE
