Modbus TCP drives DDS7xM series

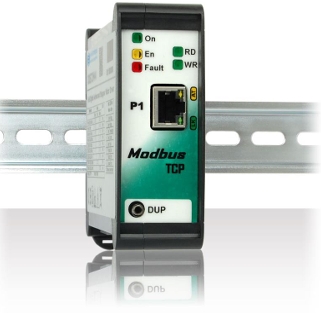

The DDS7xM series stepper motor drives allow an accurate and complete motor control through the industrial Ethernet Modbus TCP/IP protocol.
The communication speed reaches 100Mbit/s and it is possible to update Position, Velocity and Torque set points with a cycle time of less than 1ms.
The drive setting and diagnostics are possible with the use of the free Omni Automation IDE software.
Family Development
Power Supply / Motor Current
24Vdc Auxiliary Power Supply |
5 Digital Inputs, 2 Digital Outputs 1 Analog Input |
8 Digital Inputs, 3 Digital Outputs 1 Analog Input 1 Encoder Input A, B, I 1 Absolute Encoder Input SSI |
---|---|---|
20..50Vdc (16..36Vac) / 0.2..1.4Arms | DDS71M41(A) | DDS72M41(A) |
20..50Vdc (16..36Vac) / 1.0..4.5Arms | DDS71M44(A) | DDS72M44(A) |
20..50Vdc (16..36Vac) / 2.0..10.0Arms | DDS71M48(A) | DDS72M48(A) |
24..90Vdc (20..65Vac) / 1.0..4.5Arms | DDS71M74(A) | DDS72M74(A) |
24..90Vdc (20..65Vac) / 2.0..10.0Arms | DDS71M78(A) | DDS72M78(A) |
For more information about the DDS7xM series: BROCHURE
