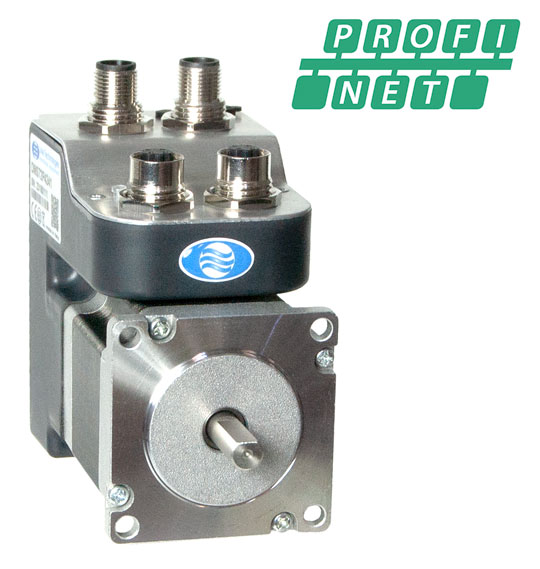

Available in 3 different sizes with torque from 1.1Nm up to 3.0Nm, the DMS7xPx2 integrated motors are characterized by compact dimensions and a rich set of features.

They can operate in position, velocity and torque control, integrate over 30 different homing modes and have digital and analog I/O for the connection of local sensors such as limit switches, touchprobe, etc.

The PROFINET bus achieves the maximum performance thanks to the support of the Isochronous real-time (IRT) mode which also allows to realize application with interpolated axes.

The DMS7xPx2 integrated motors are supplied with GSDML file and perfectly integrate with the SIEMENS STEP 7 TIA Portal engineering tool.

The fully digital realization and the vector control of the motor ensure high performances and efficiency.

The flange is standard NEMA23 and models with integrated Encoder and closed-loop motor control are also available. The reliability of the connections is ensured by M12 industrial connectors.

The power supply can be provided can also be removed to secure the application while still leaving the bus active through the auxiliary power supply.

The setting and diagnostics are possible with the use of the free Omni Automation IDE commissioning software.

All mentioned trademarks belong to their legitimate owners as well as products and trade names.

For more information on the DDS7xP series: Brochure
