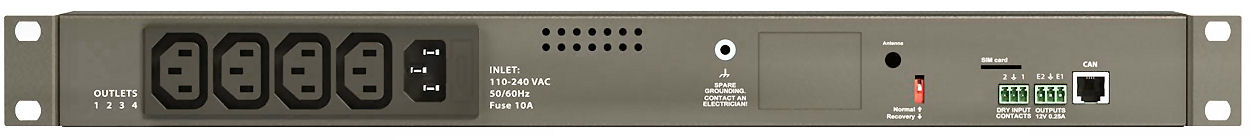

VT604 / Switched IP PDU

VT604 / Switched IP PDU

Model: VT604 Switched IP PDU

$610.00

Device is used for load management and provides the ability to switch on/off or reboot up to 4 outlets.

It has a built-in temperature sensor, can connect 2 additional sensors, 2 dry contacts, two 12V devices (for example, alarm beacons), an internal LTE modem (Ordered separately!), and USB-?am.

There are built-in servers and agents like HTTP, HTTPS, SNMP v1, 2c, 3, SMTP, Radius, Syslog, FTP, DHCP, and Watchdog.



DATA TABLE
Characteristic Data
Dimensions 440 X 44.45 (1U) X 79 Mm
Weight 1.5 kg
Power Input 1 Inlet C14, 240V, 10A
Network Interface CAN open, 1-Wire, Ethernet 10/100 Mbit/s
Input Terminals 2 Inlets C14 (240V, 10A)
Analog Sensor Ports: X2 Ports
CAN Bus Sensor Port
Dry Contacts / Digital Inputs: 2 Contacts (Pitch 3,5mm, Type IN)
Outputs 4 Outlets C13
SMA GSM
Two 12V 0,25A Outputs (Pitch 3,81mm, 3P)
Mounting 19" Rack Mountable
Wall Turnable Mount (With Extension)
Extension protocols CAN
Expansions (ordered separately) VT760 Internal LTE Modem
Power 10 watt
Status Indicators 4 orange LEDs for outlet status, Error LED, LED indication for CAN bus connection, LED indication for Power / Network connectivity, Two relay status LEDs
Components Manufactured in E.U.
Max. distance 225 m
HS Code 8471 50 000
Processor ARM926-300 MHz / 64 MB / Linux-2.6.38
Package includes 19" Mounting Brackets 2pcs
Cable EU Schuko C13 0.5mm2 230V 10A
Patch Cable RJ45 3m
Screws 6pcs M3 8mm
Self-Adhesive Rubber Foot 4 Pcs
Short Description And Connection Guide
Terminal Plug 2 Pins 3.81mm 1pc
Terminal Plug 3 Pins 3.5mm 1pcs
Warranty Card
Built-in sensors Temperature sensor (1%)
Device management manually via SMS, SNMP, Web Browser
Accessories (ordered separately) VT112 / Rotatable mounting brackets
Other Chassis grounding (M4 thread), Restart button, Recovery switch



For more information on the VT604: DATASHEET
