MODEL BRKAMC68F-R4-FT

Product Details

* Mini D-Ribbon (Mini Delta Ribbon, MDR, Mini Centronics) 68-pin connector
* Screw terminal for each of the 68 lines, plus shield
* Screw terminals accommodate wire sizes from 16AWG to 26AWG
* Approximate dimensions: 3.84" x 3.5"
* Rubber feet

General Description

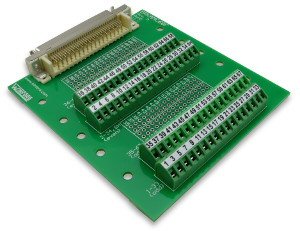

This breakout board contains a 68-pin Mini D Ribbon (MDR) Female connector. Each of the 68 connector pins is brought out to screw terminal blocks, allowing connections to be made easily. Each pin is also brought to solder pads (2 per pin) at 0.1" spacing, allowing easy addition of 0.1" pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.
